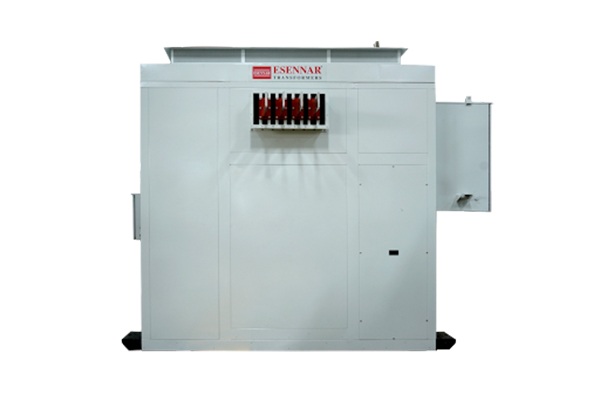

Transformers are very important in modern power systems. They assist in raising or lowering voltage in order to make electricity transmission and utilisation safe. Cast resin transformers (CRTs) among the other varieties of transformers are gaining popularity. These transformers do not require oil to insulate and cool the windings but rather a special resin surrounds the windings. The design further provides them with peculiar benefits particularly on safety and reliability.
Fire Safety: Fire safety of cast resin transformers is one of the greatest advantages of these transformers. In conventional oil-filled transformers, oil is used as both a cooling and insulating medium. Oil however is flammable and may catch fire in case of a fault. Cast resin transformers are operated with a solid non-flammable insulation, consisting of epoxy resin. They do not emit toxic substances or do not ignite easily even in extreme conditions. This increases their safety in use where they can be installed in shopping malls, hospitals, schools and office buildings.
Environmental Safety: Cast resin transformers do not use oil and this means that there can be no leaking oil. During oil leaks, soil and water may get contaminated and the cleanup of oil is expensive and damaging to the environment. This is eliminated with CRTs. They are viewed as environmentally friendly, and they are frequently used in the field where protecting the environment is of utmost importance, like residential zones, water treatment facilities, and coastal shores.
High Reliability: The cast resin transformers are built in such a way that they can operate over a number of years. The windings are insulated using epoxy resin that shields the windings against dusts, moisture and other pollutants. Due to this they are capable of safe operation in humid, dusty or chemically polluted environments where the conventional transformers fail. Their construction also minimises short circuit chances and breakdowns, which makes them very reliable.
Low Maintenance: The second factor that makes CRTs dependable is that they do not require a lot of maintenance. Oil-filled transformers must be checked frequently on their oil level, the quality and leakage of oil. Transformers made in cast resin, however, do not require such maintenance. They do not use oil so oil testing or oil replacement is not necessary. This will minimise downtimes and cut the total operating costs, but still guarantee long term performance.
Better Withstand of Short Circuits: Cast resin transformers are designed in such a way that they are resistant to short circuiting and rapid load variations. The windings are encased by a solid resin that provides them with mechanical strength and minimises the risk of damages in case of a fault. This renders them more stable in industries or urban grids wherein power demand might fluctuate in sudden spurts.
Safety in Public and Indoor Installations: CRTs are safe and silent, and thus are often put indoors, even near others. They do not emit harmful fumes, do not spill oil and their risk of fire is very low. This renders them appropriate in airports, hospitals, residential complexes and the underground metro stations where masses of people exist. They are also smaller and clean and hence can be fitted into tight areas indoors.
Moisture Resistance: One of the biggest enemies of electrical equipments is moisture. Transformers that are filled with oil would experience insulation failure in wet climates. Transformers made of cast resin, however, are very resistant to moisture. The windings are also covered by the epoxy resin coating that ensures that the transformer can still work even in wet conditions. This renders them particularly effective in the humid climates of the tropics, along the coasts and high humidity industries.
Long Service Life: The good insulation, mechanical strength, and low maintenance requirements also ensure a very long life span of cast resin transformers. They are durable, and can be used with minimum maintenance after installation. This makes them a cost effective method in the long-run though they might be more expensive to purchase than their oil-filled counterparts.
Reduced Noise Levels: CRTs create less noise when in operation compared to certain other traditional transformers. This is an added advantage in homes, offices and government buildings where low noise levels matter towards comfort and health.
Cast resin transformers are useful in ensuring that power systems are safer and reliable. By removing oil, they minimise the possibility of fire, leakage, and damage to the environment. Their sound insulation also makes them resistant to dust, moisture, mechanical forces which makes them reliable in various conditions. Having low maintenance requirements, high durability and the capacity to operate in populated areas, they are becoming the choice in most contemporary power systems.
