When it comes to power distribution, maintaining safety, dependability, and optimal performance is absolutely vital. One device that plays a vital role in ensuring these factors, especially in residential and commercial areas, is the pad-mounted transformer. If you have ever noticed a metal box on a concrete pad in your neighbourhood or outside a shopping centre, chances are you've seen one in action. But what exactly are pad-mounted transformers, and why are they important? You can pick up the fundamentals from this guide.

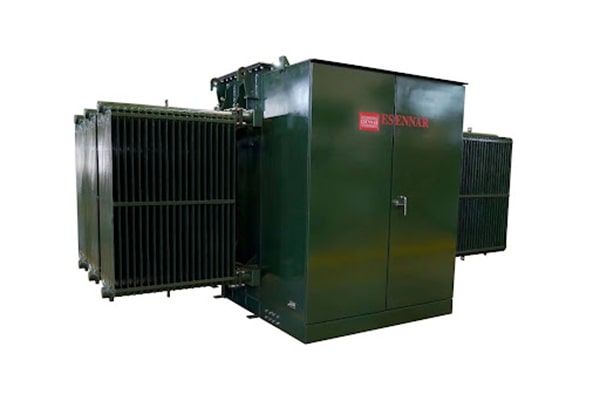

These transformers are designed to be securely placed on a concrete slab at ground level, providing a compact and accessible power distribution solution. The pad mounted transformers are much different to the traditional pole-mounted ones in that these hang on utility poles; instead, the pad mounted transformers come in a locked metal cabinet, and are put on grounds. The units are outdoor units that are commonly located in residential subdivision, commercial complex, schools, hospitals, and industrial properties.
These transformers serve a crucial purpose by converting high-voltage grid power into lower voltages for everyday consumer and commercial applications. This stepping down procedure is necessary since any sensitive appliance or electrical system could not be used to normal voltage power taken out directly from the grid.
Ground-Level Installation: These transformers sit on a concrete pad, making them accessible for maintenance but secure from tampering.
Secure Cabinet Enclosure: The transformer is enclosed in a tamper-resistant metal cabinet that protects it from the elements and unauthorised access.
Oil-Filled for Cooling: Most pad-mounted transformers use mineral oil or another cooling fluid to dissipate heat during operation.
Single-Phase or Three-Phase: They come in both single-phase (commonly used in homes) and three-phase configurations (for larger buildings and commercial setups).
Aesthetics and Safety: Since they are also mounted on the ground and have low-profile design, they are less intrusive as compared to pole mounted systems making them fit in the environment.
Improved Safety: Enclosed physical wiring and lockable cabinets reduce the chances of an electrical threat.
Easy Access for Maintenance: Experts need not use special systems (such as bucket trucks) in order to access these transformers.
Suitable for Underground Distribution: They are specifically applicable in the new electrical system where it involves use of underground cables as compared to overhead wires.
Pad-mounted transformers are widely used in residential neighbourhoods, commercial centres, schools, hospitals, light industrial parks, and renewable energy systems.
Although pad-mounted transformers are always enclosed and safe in normal condition, one must never tamper them and open them in any condition without professional knowledge. Their internals include high voltages, and so they can be very hazardous. Warning signs are normally put by the utility companies in them and regular check-ups are done by the experts.
Pad-mounted transformers have become an essential component of modern electrical distribution systems. These transformers make electricity safe and highly effective in homes and businesses through stepping down of high power supply voltage into energy that can be utilised daily. Its design in the ground level and safe operations, their ability to complement with the underground systems is making them a better option in most of the urban and suburban areas. For anyone new to the world of electrical infrastructure, understanding pad-mounted transformers is a great step toward grasping how power gets from the grid to your wall socket.
